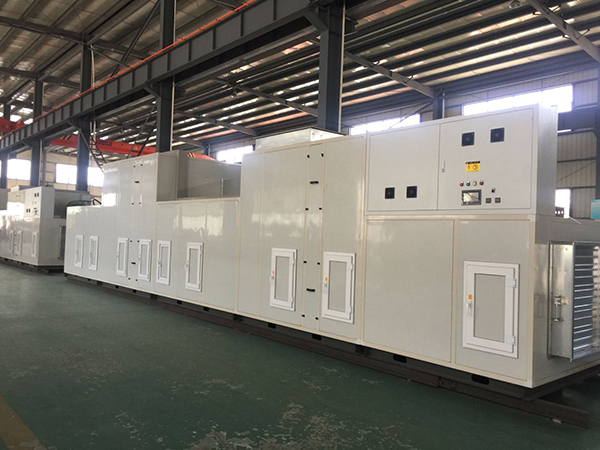

低露点转轮除湿机组
添加时间：2018-06-30
1低露点式转轮除湿机组利用特殊机组结构，可将空气处理至超低湿度。
2最低可将空气处理至-70℃空气露点，达到客户绝对干燥的要求。
2最低可将空气处理至-70℃空气露点，达到客户绝对干燥的要求。
| 型号 | 处理风量(m3/h) | 再生风量(m3/h) | 额定除湿量（kg/h） | 再生功耗（kw） | 整机功率（kw） | 制冷量 | 尺寸（mm） | ||||
| 电加热 | 蒸汽加热 | 电加热 | 蒸汽加热 | A | B | C | |||||
| SRT-850-D/Z-DL | 800 | 280 | 8.6 | 13.5 | 14.9 | 16.4 | 5400 | 900 | 1250 | ||
| SRT-1000D/Z-DL | 1200 | 405 | 12.1 | 19.4 | 21.3 | 23.2 | 5400 | 950 | 1300 | ||
| SRT-1500D/Z-DL | 1500 | 500 | 16.7 | 24.3 | 26.9 | 31.9 | 5400 | 1000 | 1450 | ||
| SRT-2000D/Z-DL | 2000 | 660 | 20.2 | 32.4 | 46.2 | 35.9 | 3.57 | 39.0 | 5700 | 1000 | 1450 |
| SRT-2500D/Z-DL | 2500 | 850 | 25.2 | 40.3 | 57.7 | 45.4 | 5.15 | 48.8 | 6000 | 1050 | 1500 |
| SRT-3000D/Z-DL | 3000 | 1000 | 30.3 | 48.4 | 69.3 | 53.7 | 5.35 | 58.5 | 6200 | 1100 | 1550 |
| SRT-3500D/Z-DL | 3500 | 1150 | 35.3 | 56.5 | 80.8 | 63.4 | 6.95 | 68.3 | 6300 | 1200 | 1650 |
| SRT-4000D/Z-DL | 4000 | 1300 | 40.4 | 64.6 | 92.4 | 71.5 | 6.95 | 78.1 | 6900 | 1250 | 1700 |
| SRT-4500D/Z-DL | 4500 | 1500 | 45.4 | 72.7 | 103.9 | 80.0 | 7.3 | 87.8 | 7000 | 1300 | 1800 |
| SRT-5000D/Z-DL | 5000 | 1650 | 50.4 | 80.8 | 115.5 | 88.1 | 7.3 | 97.6 | 7200 | 1350 | 1950 |
| SRT-6000D/Z-DL | 6000 | 2000 | 60.5 | 97.0 | 138.6 | 106.7 | 9.7 | 117.1 | 7400 | 1400 | 2000 |
| SRT-7000D/Z-DL | 7000 | 2300 | 70.6 | 113.0 | 161.7 | 125.7 | 12.7 | 136.6 | 7800 | 1500 | 2100 |
| SRT-8000D/Z-DL | 8000 | 2650 | 80.7 | 129.2 | 184.8 | 142.6 | 13.4 | 156.2 | 7900 | 1600 | 2200 |
| SRT-9000D/Z-DL | 9000 | 3000 | 90.8 | 145.4 | 207.9 | 162.8 | 17.4 | 175.7 | 8100 | 1700 | 2350 |
| SRT-10000D/Z-DL | 10000 | 3250 | 100.8 | 161.6 | 231.0 | 179.8 | 18.2 | 195.2 | 8200 | 1750 | 2400 |
| SRT-12000D/Z-DL | 12000 | 4000 | 120.9 | 193.8 | 277.3 | 212.0 | 18.2 | 234.3 | 8400 | 1900 | 2550 |
| SRT-13000D/Z-DL | 13000 | 4300 | 131.1 | 210.0 | 300.4 | 235.2 | 25.2 | 253.8 | 8500 | 1900 | 2550 |
| SRT-15000D/Z-DL | 15000 | 5000 | 151.2 | 242.4 | 346.6 | 267.8 | 25.4 | 292.9 | 8800 | 2050 | 2700 |
| SRT-16000D/Z-DL | 16000 | 5300 | 161.3 | 258.4 | 369.7 | 283.8 | 25.4 | 312.4 | 8800 | 2100 | 2800 |
| SRT-18000D/Z-DL | 18000 | 6000 | 181.5 | 290.8 | 415.9 | 317.2 | 26.4 | 351.4 | 9000 | 2300 | 2900 |
| SRT-20000D/Z-DL | 20000 | 6500 | 201.6 | 323.2 | 462.1 | 349.6 | 26.4 | 390.5 | 9600 | 2400 | 2950 |
| SRT-22000D/Z-DL | 22000 | 7200 | 221.8 | 355.5 | 508.3 | 389.8 | 34.4 | 429.5 | 9800 | 2450 | 3000 |
| SRT-25000D/Z-DL | 25000 | 8300 | 252.0 | 403.9 | 577.7 | 438.3 | 34.4 | 488.1 | 9800 | 2700 | 3250 |
| SRT-28000D/Z-DL | 28000 | 9300 | 282.3 | 452.5 | 647.0 | 493.9 | 41.4 | 546.7 | 10000 | 2800 | 3350 |
| SRT-30000D/Z-DL | 30000 | 10000 | 302.4 | 484.7 | 693.2 | 526.1 | 41.4 | 585.8 | 10500 | 2900 | 3450 |
